Physical Class Reference

A physical value. More...

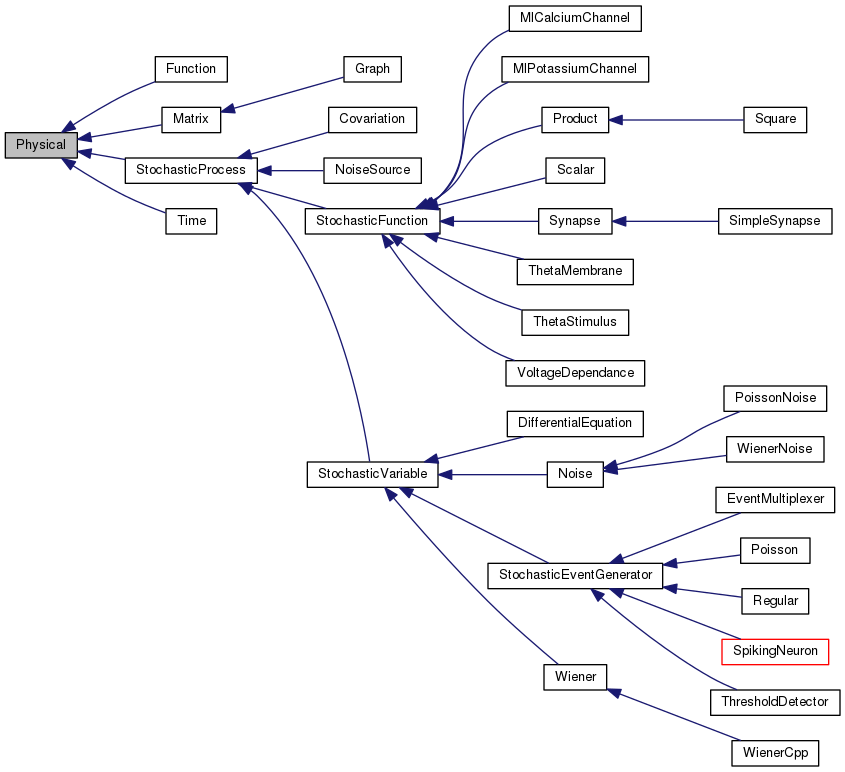

Inheritance diagram for Physical:

Public Member Functions
	Physical ()
	Construct.
	Physical (const Physical &)
	Copy.
	Physical (string name)
	Construct.
	Physical (string name, string unitPrefix, string unitSymbol)
	Construct.
	Physical (string name, Unit unit)
	Construct.
virtual string	getDescription ()
	Retrive the physical name. More...
virtual string	getPhysicalDescription ()
	Returns the physical description. More...
virtual string	getUnitName ()
	Returns the unit name.
virtual string	getUnitSymbol ()
	Returns the unit name.
virtual void	setDescription (string name)
	Set the name. More...
virtual void	setPhysicalDescription (string name)
	Set the name. Same as setDescription(). More...
virtual void	setUnit (Unit u)
	Set the unit.
virtual void	setUnitPrefix (int n)
	Set unit prefix. More...
virtual Unit	getUnit () const
	Retrieve the unit.

Detailed Description

A physical value.

This is a 'something' that has a physical dimension (like time, weight, length...). It has a physical unit and a name (like 'voltage'). Use physical.getUnit().set(...) to set the physical unit.

Member Function Documentation

virtual string Physical::getDescription ( )

virtual

Retrive the physical name.

The name is constructed from the physical name (like "membrane voltage") and the unit symbol (like "mV"). In this example is would read "membrane voltage [mV]".

Reimplemented in StochasticProcess.

virtual string Physical::getPhysicalDescription ( )

inlinevirtual

Returns the physical description.

This is the name of the physical dimension of the object, if it has any. ("" otherwise)

Reimplemented in Time.

virtual void Physical::setDescription ( string  name )

virtual

Set the name.

The name of the physical quantity, like 'voltage'

Reimplemented in StochasticProcess.

virtual void Physical::setPhysicalDescription ( string  name )

virtual

Set the name. Same as setDescription().

The name of the physical quantity, like 'voltage'

virtual void Physical::setUnitPrefix ( int  n )

virtual

Set unit prefix.

Set the unit prefix by giving an integer from -24 to 24. Should be a multiple of 3, exception: -2,-1,2,1.
