StochasticProcess Class Reference

A stochastic variable. More...

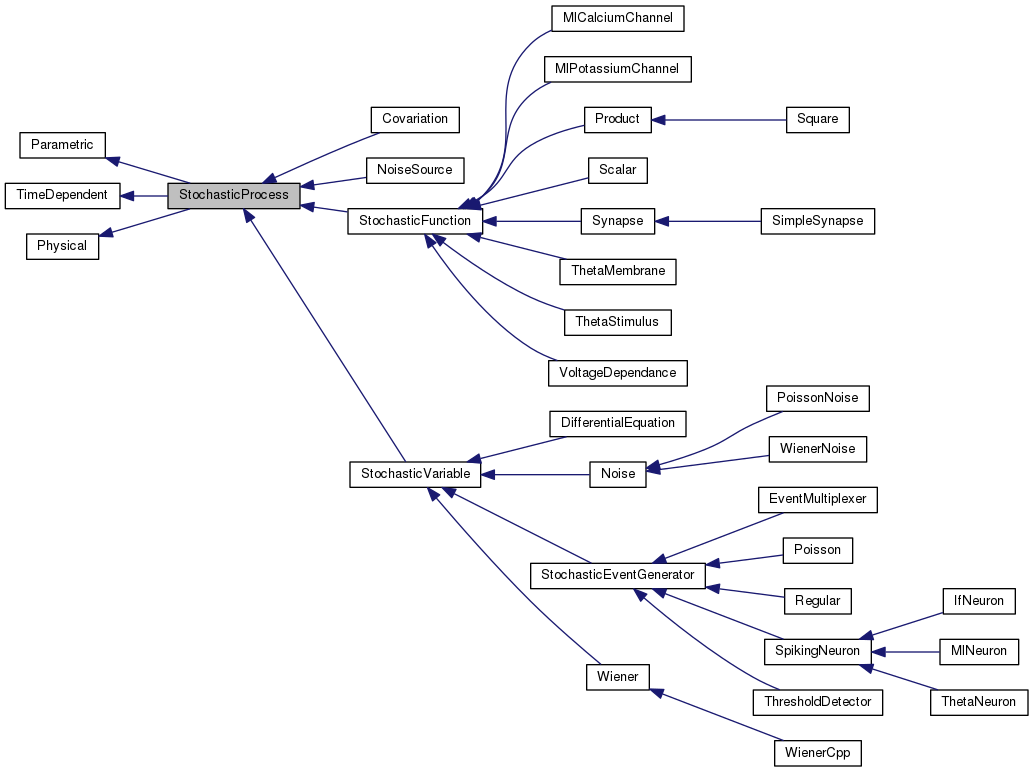

Inheritance diagram for StochasticProcess:

Public Member Functions
	StochasticProcess (class Time *time, const string &name="", const string &type="Stochastic")
	Create.
virtual	~StochasticProcess ()
	Destroy.
virtual void	proceedToNextState ()
	Proceed one time step. More...
virtual void	prepareNextState ()
	Calculate next value (preparing next step). More...
bool	isNextStatePrepared ()
	Whether.
virtual double	getIncrement ()
	Returns the increment. More...
virtual double	getCurrentValue ()
	Returns the value of the process. More...
virtual double	getNextValue ()
	Returns the next value of the process. More...
virtual void	setNextValue (double d)
	Set the next value of the process. More...
virtual void	setCurrentValue (double d)
	Set the current value of the process. More...
void	setDescription (string s)
	Set stochastic description.
virtual void	init ()
	Initialise time-dependent values.
string	getDescription ()
	Get the name. More...
Public Member Functions inherited from Parametric
string	getType () const
	Type of object.
string	getName () const
	Name of object.
void	setName (const string &name)
	Name of object.
string	getConfiguration () const
	Returns the configuration of the object. More...
string	getAllParameters () const
	String with all parameter settings.
void	addParameter (const string &name)
	Add a parameter. More...
void	rmParameter (const string &name)
	Remove a parameter. More...
virtual void	setParameter (const string &name, const string &value)
	Set parameter. More...
virtual string	getParameter (const string &name) const
	Get parameter. More...
Public Member Functions inherited from TimeDependent
	TimeDependent (class Time *time)
	Construct. More...
virtual class Time *	getTime () const
	Return pointer to the time object.
Public Member Functions inherited from Physical
	Physical ()
	Construct.
	Physical (const Physical &)
	Copy.
	Physical (string name)
	Construct.
	Physical (string name, string unitPrefix, string unitSymbol)
	Construct.
	Physical (string name, Unit unit)
	Construct.
virtual string	getPhysicalDescription ()
	Returns the physical description. More...
virtual string	getUnitName ()
	Returns the unit name.
virtual string	getUnitSymbol ()
	Returns the unit name.
virtual void	setPhysicalDescription (string name)
	Set the name. Same as setDescription(). More...
virtual void	setUnit (Unit u)
	Set the unit.
virtual void	setUnitPrefix (int n)
	Set unit prefix. More...
virtual Unit	getUnit () const
	Retrieve the unit.

Protected Attributes
double	stochCurrentValue
	the current value
double	stochNextValue
	the next value (direct future)
bool	stochNextStateIsPrepared
	whether prepareNextState() was successful
string	stochDescription
	the name of the quantity

Additional Inherited Members
Protected Member Functions inherited from Parametric
	Parametric (const string &name, const string &type)
	Create object of type and name.
virtual	~Parametric ()
	Destroy object.

Detailed Description

A stochastic variable.

This class implements a stochastic process, either has a simple process, or as a function of another variable. All forms of stochastic variables should inherit from this class. Main functionality is implemented in the prepareNextState() function, which should be overriden in deriving classes.

Member Function Documentation

virtual double StochasticProcess::getCurrentValue ( )

inlinevirtual

Returns the value of the process.

This is the current value. The difference to operator()(double) is that it never proceeds the object's time. Implementing this function is compulsary.

string StochasticProcess::getDescription ( )

inlinevirtual

Get the name.

Returns the stochastic name

Reimplemented from Physical.

virtual double StochasticProcess::getIncrement ( )

inlinevirtual

Returns the increment.

This is the difference to the next time step. The difference to operator()() is that it never proceeds the object's time.

virtual double StochasticProcess::getNextValue ( )

inlinevirtual

Returns the next value of the process.

This is the next value. This is the same as getCurrentValue() + getIncrement().

virtual void StochasticProcess::prepareNextState ( )

inlinevirtual

Calculate next value (preparing next step).

This method should be overridden to implement the calculation of the next value, using information wich is available at the current time. The method must set the protected member stochNextStateIsPrepared to true if successful.

Implements TimeDependent.

Reimplemented in NoiseSource, Regular, Poisson, MlNeuron, IfNeuron, SimpleSynapse, DifferentialEquation, ThetaNeuron, Noise, Wiener, EventMultiplexer, and Covariation.

virtual void StochasticProcess::proceedToNextState ( )

inlinevirtual

Proceed one time step.

This method can be overridden to implement the proceeding of one time step. This makes new information available at the current time. (See also proceedToNextState()). The default just writes stochNextValue into stochCurrentValue.

Implements TimeDependent.

Reimplemented in NoiseSource, MlNeuron, IfNeuron, SimpleSynapse, and Noise.

virtual void StochasticProcess::setCurrentValue ( double  d )

inlinevirtual

Set the current value of the process.

Used for reflecting boundaries etc..

Reimplemented in IfNeuron.

virtual void StochasticProcess::setNextValue ( double  d )

inlinevirtual

Set the next value of the process.

Used for reflecting boundaries etc..

Reimplemented in IfNeuron.
